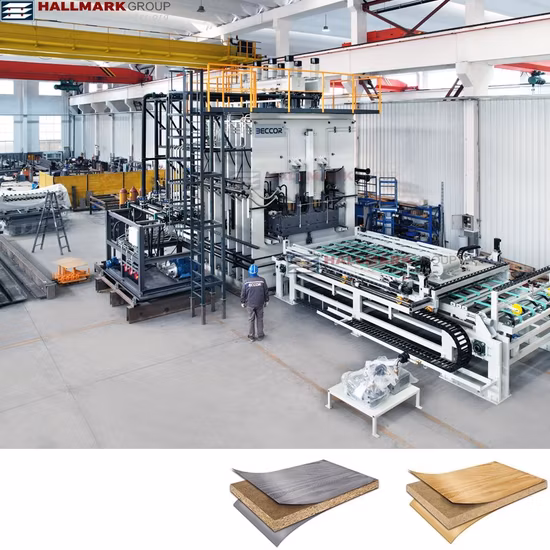

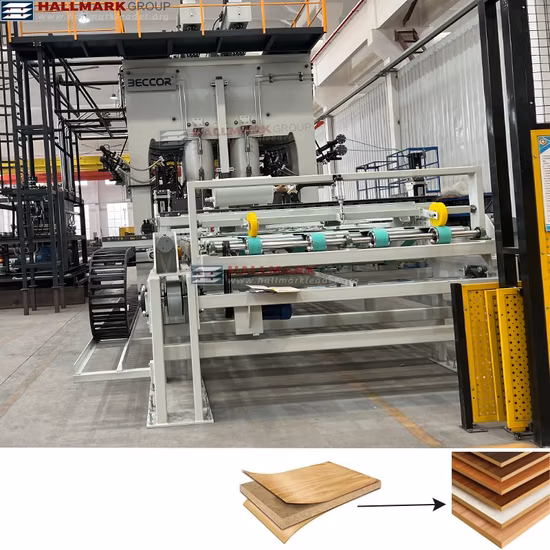

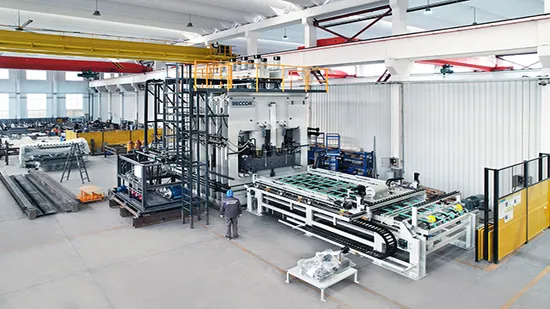

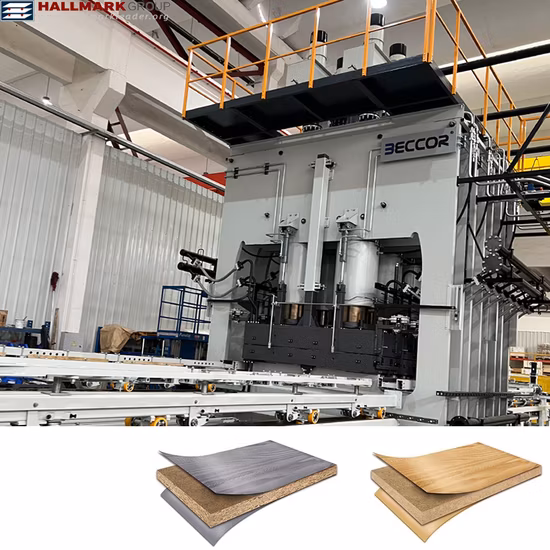

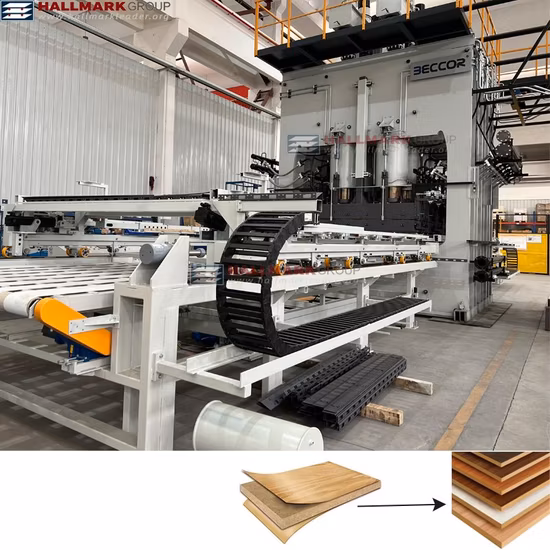

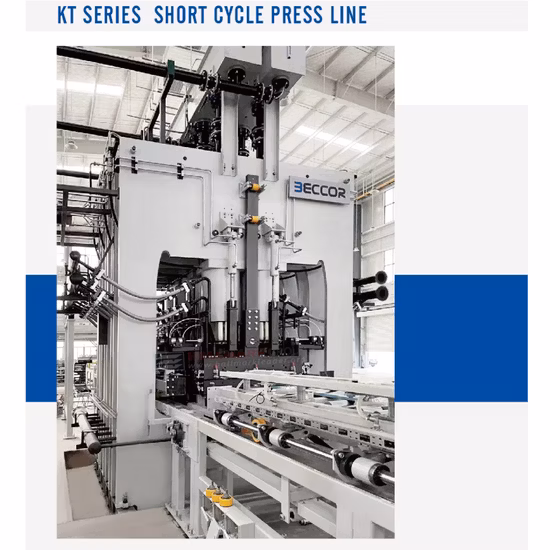

Automatic High Speed Paperboard Laminating Machine

Basic Info

Model NO.	BKJ1307
Thickness of Upper Paper	100~800GSM
Thickness of Bottom Paper	200~2000 GSM
Max. Speed	150PCS/Min
Lamination Precision	0.5mm
Total Weight	9000kg
Total Length	10500kg
Operation Space	3000X13500
Power	3~380V(50Hz)
Transport Package	Inron Plate Wrapped with Plastic Film
Specification	CE, ISO 9001
Trademark	JUXING
Origin	China
HS Code	84393000
Production Capacity	4 Sets/Month

Product Description

Automatic Card To Card Lamination Machine

1. Specifications

Model	1307	1310	1410
Max. Sheet Size (WxL)	1270mmx720mm	1270mmx1000mm	1410mmx1410mm
Min. Sheet Size (WxL)	500mmx380mm	500mmx400mm	500mmx400mm
Thickness of Upper Paper	100~800gsm	100~800gsm	100~800gsm
Thickness of Bottom Paper	200~2000gsm	200~2000gsm	200~2000gsm
Max. Speed	150pcs/min	120pcs/min	120pcs/min
Lamination Precision	±0.5mm	±0.5mm	±0.5mm
Total Weight	9000kg	9000kg	11000kg
Total Length	10500	10500	12000
Operation Space	3000x13500	3000x13500	3000x13500
Power	3~380V(50Hz)	3~380V(50Hz)	3~380V(50Hz)

1. Introduction of The Machine:
   1. Function of the machine: The machine can laminate card to card together to make tags, boxes etc.
   2. Structure:

Upper Feeder: 110-800 gsm paper
Lower Feeder: 180-800 gsm paper
Compressor: Compress the laminated paper and conveying them to the piling part.
Paper piling part: To pile the laminated paper
Gluing Part: To glue on the bottom paper
Registration Part: To ensure precise paper lamination.

Features By Part;

1. The machine adopts mature high speed feeding structure with simple operation, easy maintenance which can fit to various kinds of paper.
2. Four sucking and five forwarding which can do feeding of thin paper and wrapped paper.
3. Double sucking rubber and single rubber forwarding which can avoid effectively double paper.
4. Equipped with two blower to ensure paper separation smoothly.
5. There are two side blowers as well. The position of the side blower can be adjusted to ensure the smooth feeding of paper.

1. Registration Adjustment:
   1. The operator can adjust the registration place of the paper either the wheel or by the fine adjustment handle to adjust the left and right position.
   2. For the in lamination, you can adjust the wheel according to the number it shows.
   3. The registration of lamination can be done when the paper is running. When fine adjustment is needed, you can only press related button to do the adjustment.


   4.

   5. The registration of the piling can be achieved by pressing the related buttons on the panel.
   6. Both of the pressure and glue volume adjust is easy by turning the adjustment wheel. You can record down the number in case you will have the same paper size.
   7. Three pressing belt to ensure smooth running of the paper

   8.

   9. Top and bottom front lay using chasing method to laminate the face paper and bottom paper.

   10.

   11. To protect paper roller with the roller, 6 anti-roll device is equipped with the machine.
   12. Two washing rollers are equipped with the machine, one is under gluing roller and one is under pressing roller to keep clean of the paper.
   13. Anilox roller makes the glue consumption even and less ( PVA is test for 30 gsm)

   14.

   15. Main bearings are NSK brand.
   16. Main electrical components are adopts famous brand, with features of long lifespan and good quality.
