Hydraulic Mill Roll Stand For Corrugated Paper

Basic Info

Model NO.	NP-D
Certification	ISO9001, CE
Application	carton package
Driven Type	Hydraulic
After-Sales Service Provided	Engineers Available to Service Machinery Overseas
Type	Carton Packaging Machinery
Automatic Grade	Semi-Automatic
Suitable Substrates	paper
Transport Package	Plastic Film and Wooden Pack
Specification	1600/1800/2000/2200mm
Trademark	NORTHPACK
Origin	Dongguang/Hebei
HS Code	84413
Production Capacity	10 Units Per Month

Product Description

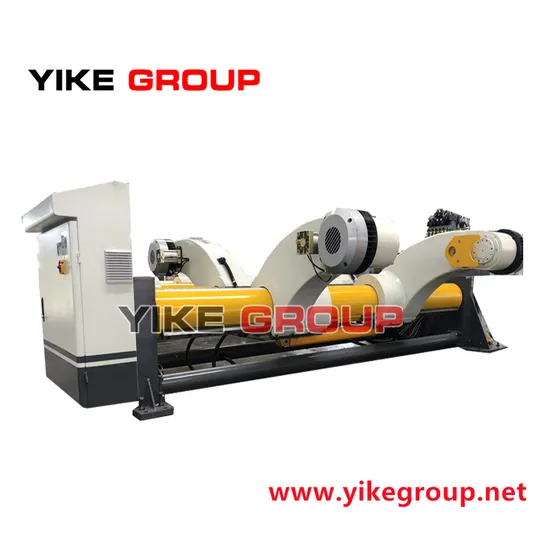

Hydraulic Mill Roll Stand For Corrugated PaperThe structure is double rotary shafts with four arms; support two paper roll on both arms at the same time, could load or unload paper mill rolls non-stop.
Hydraulic control the paper roll upward or downward, left shift or right shift, tighten or loosen, centering.
Brake adjusting by ventilating disc-type pneumatic brake system. (3point)
Equipped with twin-stage springiness chucks, size: 3/4 inch

Technical parameter:

1.	Control type	full hydraulic
2.	Working width:	800-1600mm
3.	One-side load diameter	¢350-¢1500mm
4.	One-side load weight	3500KG
5.	Axis diameter	¢270mm
6.	Working power requirement	380V 50HZ

Hydraulic control system:

1.	Working pressure	16-18Mpa
2.	Cylinder working area (upward or downward)	¢100X440mm
3.	Cylinder working area (left shift or right shift, tighten or loosen)	¢63X1300mm
4.	Hydraulic station power	4KW
5.	Magnetic valve electric require	380V 50HZ

Material and origin:

No	Main part name	Origin	Raw material
1	principal axis	Tanko	Thick seamless steel pipes, Diameter: ¢242mm
2	Arms	Local	HT200 casting iron
3	Wallboard	Jinan steel	Q235A weld assembly Q235A
4	Bearing	HRB, ZWZ, LYC
5	Springiness chucks	XuSheng, zhejiang (sunrise)
6	Relay	Schneider, France
7	Pneumatic parts	Airtec, Taiwan
8	Hydraulic Pump	Zaozhang, shandong
9	Brake pump	Hongwei, NingBo

Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.

Our Services

1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our
professional machine making team and strict QC team, we will
also send you our manual and video, what you need to do is just
learn some basic thing such as machine maintenance.
