Automatic Paperboard Gantry Stacker Machine

Basic Info

Model NO.	MJDM-5
Certification	CE
Application	Machinery & Hardware
Driven Type	Electric
After-Sales Service Provided	Engineers Available to Service Machinery Overseas
Type	Carton Packaging Machinery
Automatic Grade	Automatic
Width	1600-2000mm
Height Stacker	1500mm
Bottom Stack Length	3000mm
Min. Working Width	300mm
Max. Speed	150m/Min
Working Speed	120m/Min
Max. Stack Length	2300mm
Min. Stack Length	300mm
Pneumatic Pressure	0.6~0.9MPa
Power	11kw
Transport Package	Wooden Pallet, or Steel Pallet
Specification	CE
Trademark	ROYAL
Origin	China
HS Code	844180900
Production Capacity	10sets/Month

Product Description

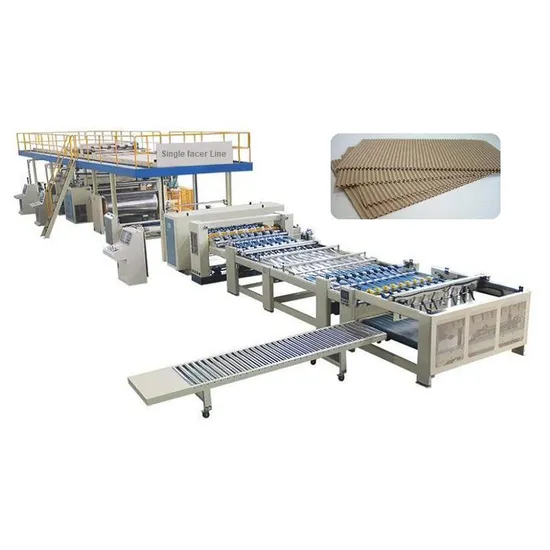

MJDM-5 Gantry and stacker

Introduction: The gantry and stacker machine is the end part of the corrugated paperboard line. It is used for the stacking of the paperboards, and then transport out. Characteristic:1. PLC control for output, automatically stack, automatically transport paperboards.2. Long transport part is for helping to slow the high-speed running paperboard, to avoid the damage of the paperboard.3. There is trundle equipment in transversely output part, between transporting paperboard equipment has baffle.4. Use belt for transport, stably and orderly send out.5. Baffle orientation automatically.6. Automatically counting and control, automatically circulating stacking. The work can also be done by hand.7. PLC control and digital display stacking. The numbers can be set as requirement. Operation is easy and fast.8. Use frequency conversion motor control, synchronize with the production line.9. There are several photoelectric switches, realize the function of automatically paperboard sending, counting, batching, stacking, output, and recycling work.Main parameters:

Model	MJDM-5-1600	MJDM-5-1800	MJDM-5-2000
Max. working width	1600mm	1800mm	2000mm
Min. working width	300mm	300mm	300mm
Max. Speed	150m/min	150m/min	150m/min
Working speed	120m/min	120m/min	120m/min
Max. Stack length	2300mm	2300mm	2300mm
Min. Stack length	300mm	300mm	300mm
Max. Stack height	1500mm	1500mm	1500mm
Pneumatic pressure	0.6~0.9MPa	0.6~0.9MPa	0.6~0.9MPa
Power	9kw	11kw	13kw
Machine size (mm)	17600*2200*3500	17600*2400*3500	17600*2600*3500

Note: We can produce the machine size as customer's requirement.----------------------------------------------------------------We have more than 20 years' experience in manufacturing corrugated cardboard production machine field. Top quality, Competitive price, Timely delivery and Heart-to-heart service. Your Best Partner in China!!
